PVC/PE SERIES

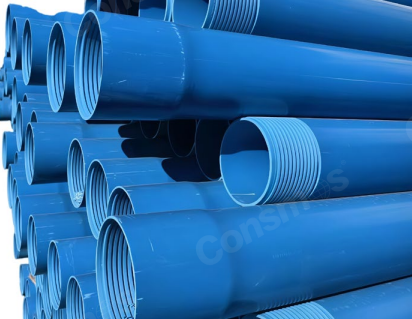

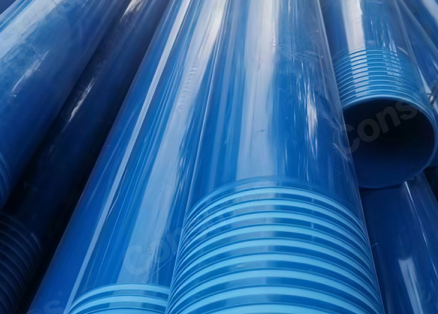

1、PVC/PE THREADED PIPE
PVC or PE body with standard machined threads at ends.
PRODUCT INTRODUCTION
PVC threaded pipe is made of high-quality polyvinyl chloride (PVC) resin through extrusion, with precision-machined standard threads at both ends. The threads allow quick mechanical connection with matching threaded fittings or couplings, requiring no glue or fusion equipment. Easy to install, disassemble and reuse.
Ideal for temporary irrigation, mobile water supply, mine drainage and other applications requiring frequent assembly and disassembly.
PRODUCT ADVANTAGES:
QUICK CONNECTION
Threaded joint, no glue or fusion tools, high on-site efficiency
REUSABLE
Threads remain intact after disassembly, multiple uses reduce project cost
RELIABLE SEALING
With PTFE tape or sealing ring, no leakage at joint
CORROSION RESISTANT
PVC material resists acid, alkali and salt, suitable for various water qualities and environments
LIGHTWEIGHT & DURABLE
Easy to handle, good impact resistance

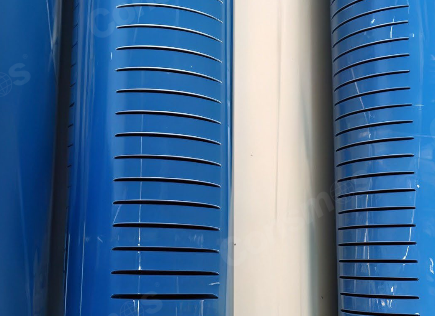

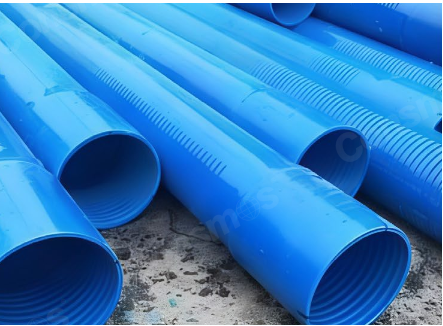

2、PVC/PE SLOTTED PIPE
Precision-cut slots (0.5-2mm) along the wall, plus threaded ends
PRODUCT INTRODUCTION
PVC slotted threaded pipe is based on PVC threaded pipe with precision-cut slots (0.5-2mm wide) along the axial or circumferential direction on the pipe wall. The slots allow slow water infiltration or exfiltration while effectively blocking large soil particles from entering. Standard threads at pipe ends enable series connec-
tion to form seepage or drainage systems. Widely used in subsurface irrigation, French drain, and salt leaching projects.
PRODUCT ADVANTAGES:
PRECISION SLOT
Uniform slot width, high water infiltration/drainage efficiency, good anti-clogging performance
END THREADS
Quick connection without special tools, easy to extend or disassemble
SOIL PARTICLE RESISTANCE
Optimized slot width effectively blocks sand and gravel, extending system life
CORROSION RESISTANT
PVC resists acid, alkali and microbial corrosion in soil
COMPATIBLE WITH GEOTEXTILE
Wrapping with geotextile provides finer filtration for sensitive environments

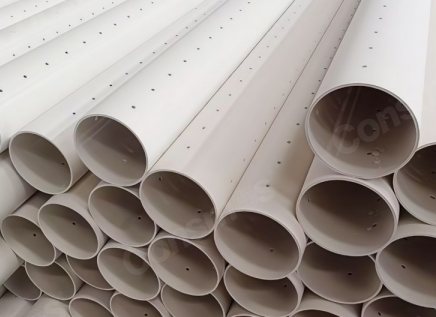

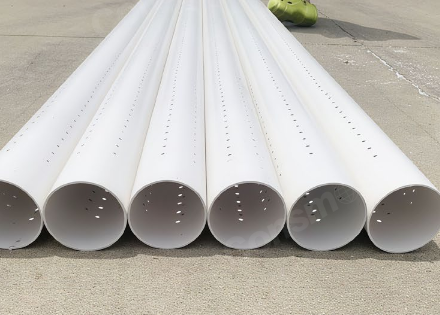

3、PVC/PE PERFORATED PIPE
Uniformly drilled holes (3-10mm diameter), customizable open area
PRODUCT INTRODUCTION
PVC perforated pipe is made by drilling uniform round holes (3-10mm diameter) on the PVC pipe wall at specified spacing and patterns. The open area ratio can be customized according to project requirements.
The pipe retains PVC's inherent properties of corrosion resistance, light weight and smooth inner wall. After perforation, it becomes a high-efficiency water collection or distribution pipe, which can be used alone or with geotextile. Ends can be plain, socket or threaded. Suitable for agricultural subsurface drainage, underground water collection, slope drainage, etc.
PRODUCT ADVANTAGES:
HIGH COLLECTION/DISTRIBUTION EFFICIENCY
Uniform holes, large open area, high drainage/infiltration capacity
ADJUSTABLE OPEN AREA
Hole diameter, spacing and rows can be customized for different flow requirements
HIGH COMPRESSIVE STRENGTH
Drilling does not compromise overall ring stiffness,no deformation when buried
ANTI-CLOGGING DESIGN
Can be wrapped with geotextile or gravel filter layer to extend service life
FLEXIBLE CONNECTION
Threaded, socket adhesive or fusion (for PE) options available
